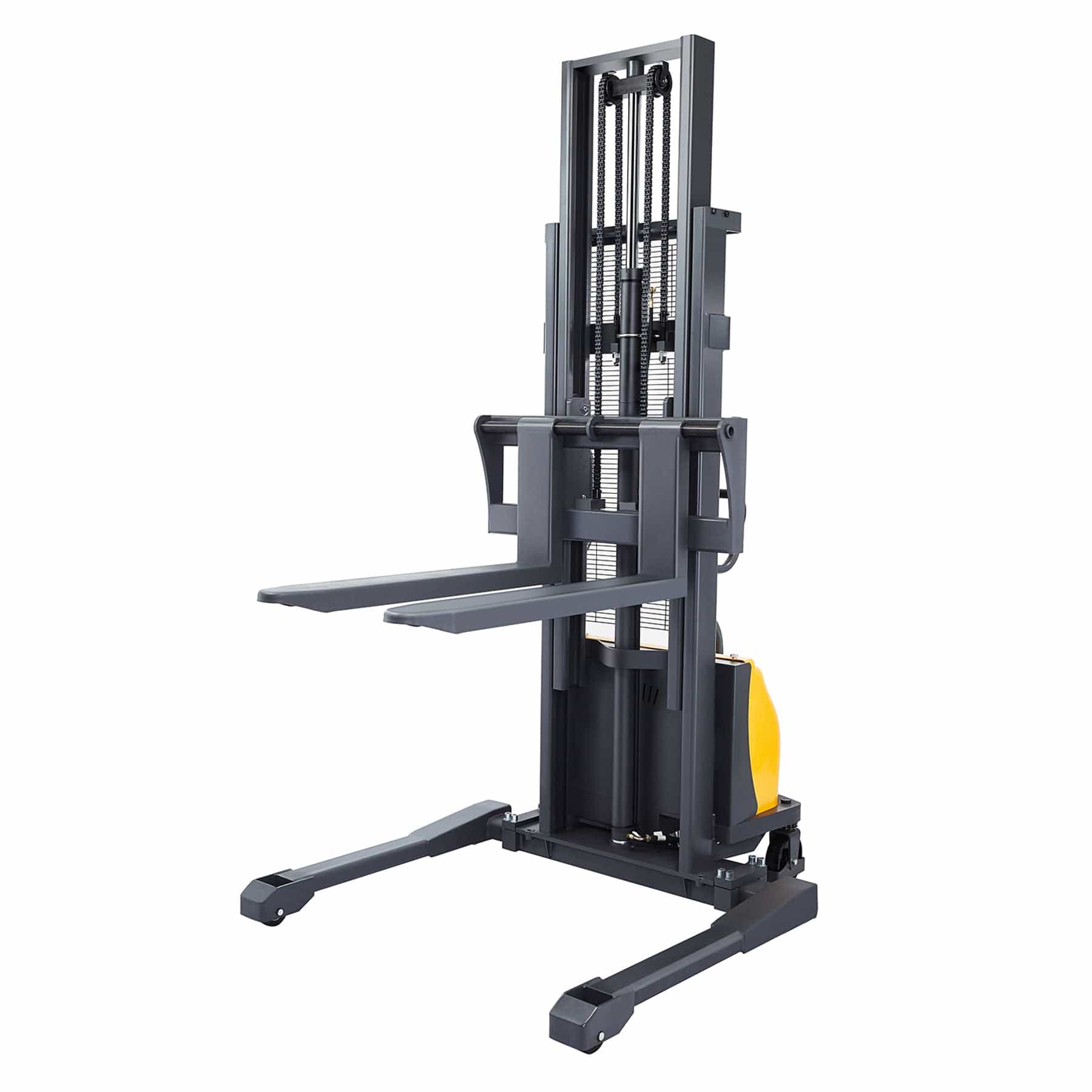

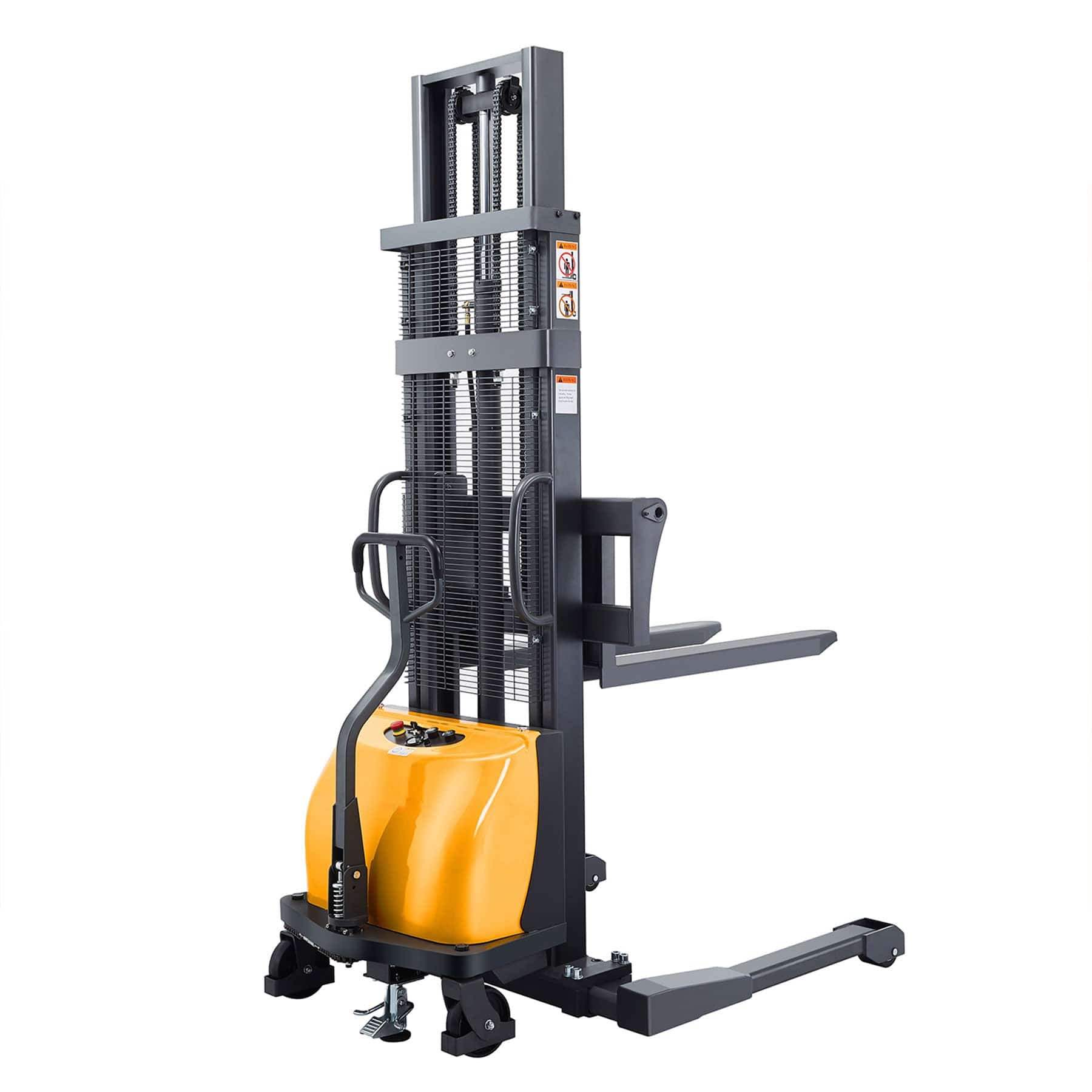

Apollolift Semi-Electric Straddle Stacker 2200Lbs Cap. 98" Lifting

Manual Push And Pull, Powered Lifting And Lowering!

• Special chain steering system.
• Integrate panel design.
• Foot pedal brake for safety and ramp usage.

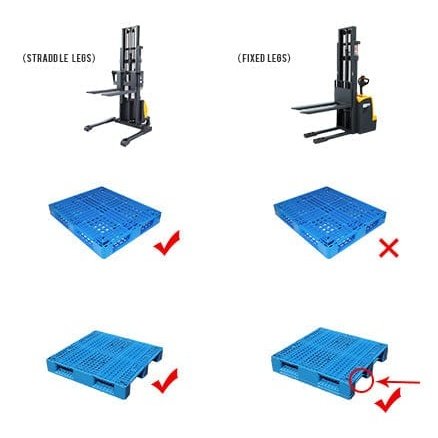

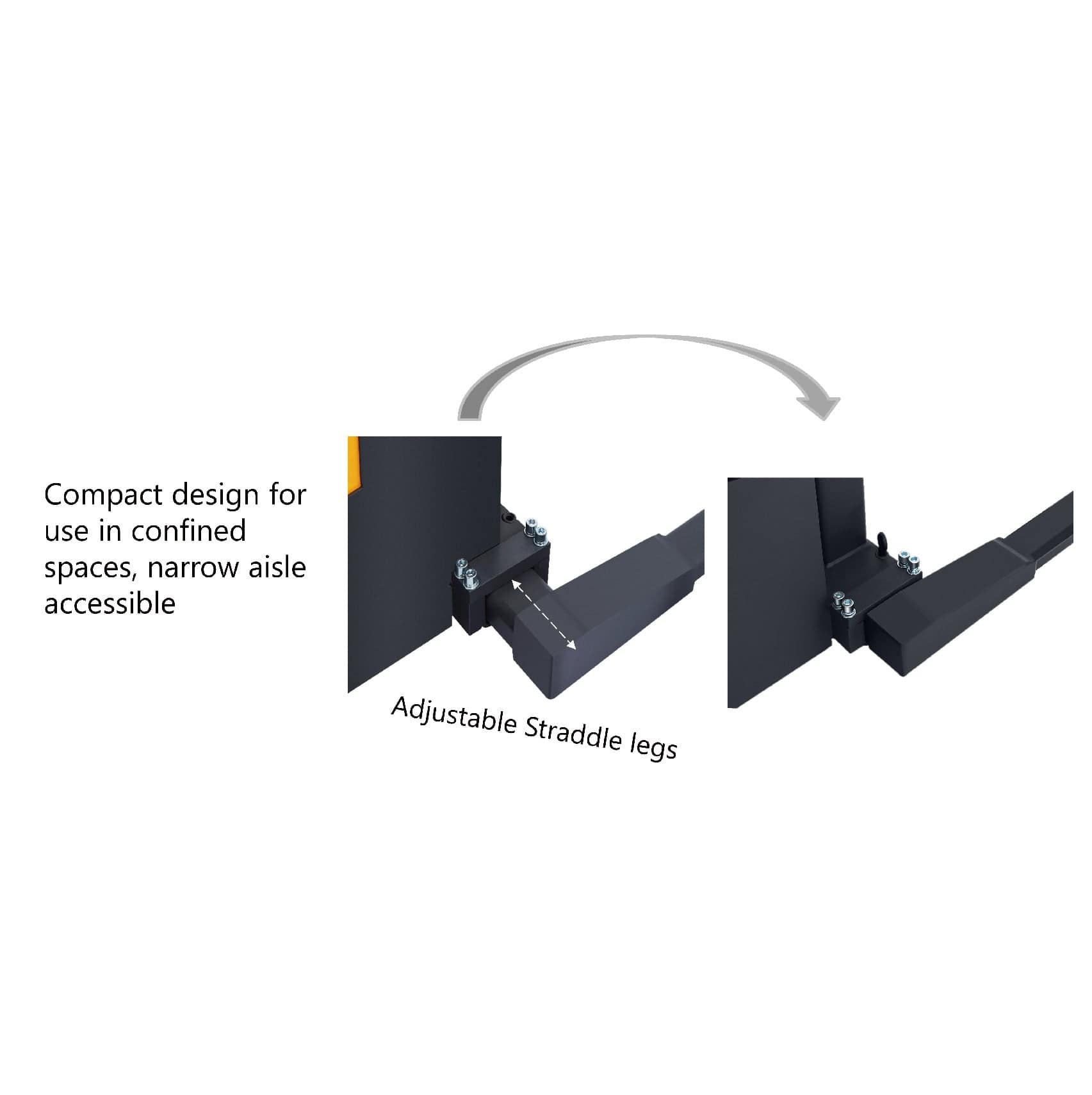

• Adjustable forks and straddle legs.

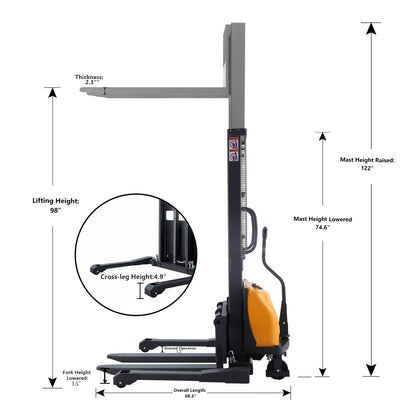

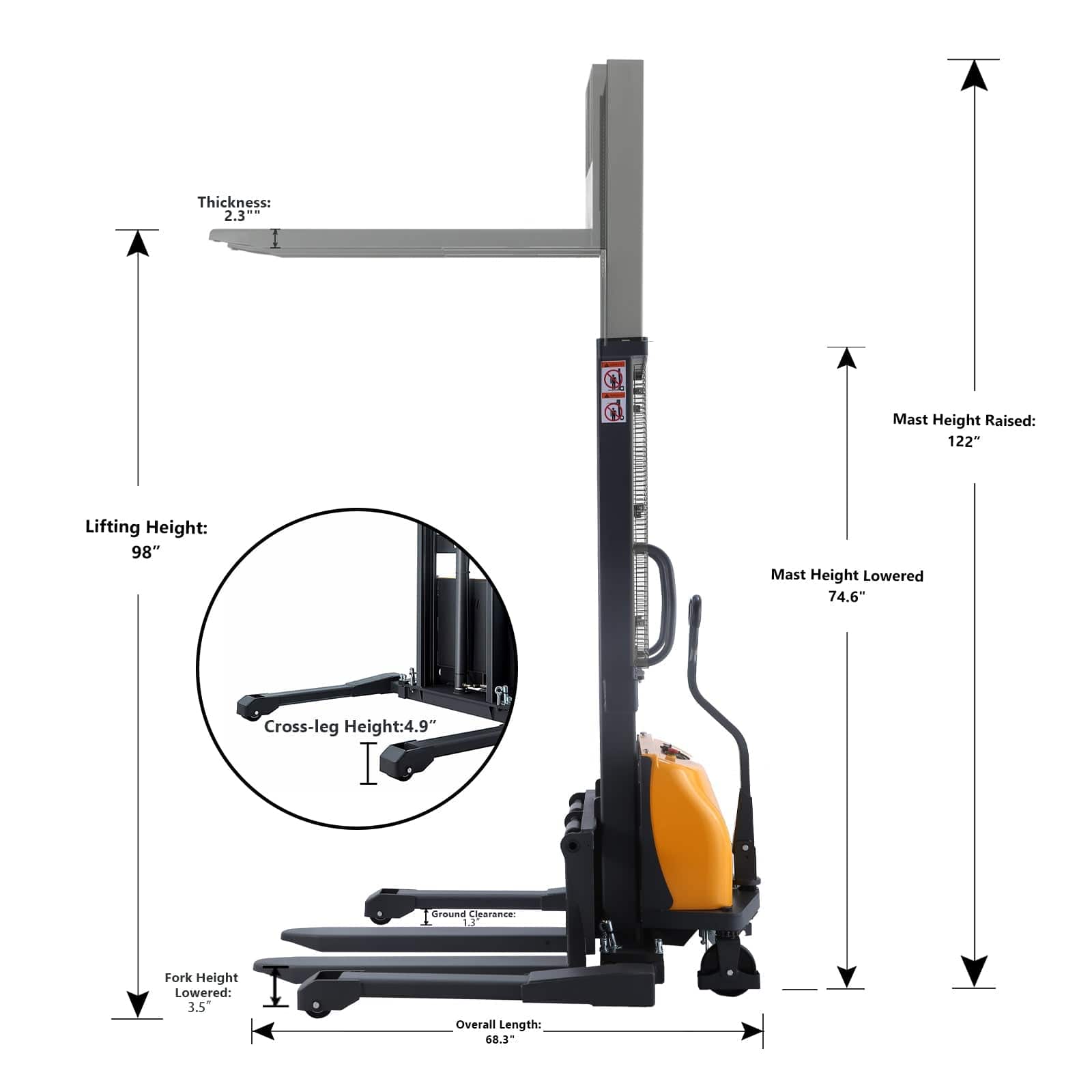

DIMENSIONS:

• Overall Length：68.3"
• Overall Width：44½"-60.3"
• Recommended Aisle Width：89.2"
• Turning Radius：56.1"
• Mast Height Lowered：74.6"
• Mast Height Raised：122''
• Load Center：19.7"
• Wheel Diameter：7''/3.15''

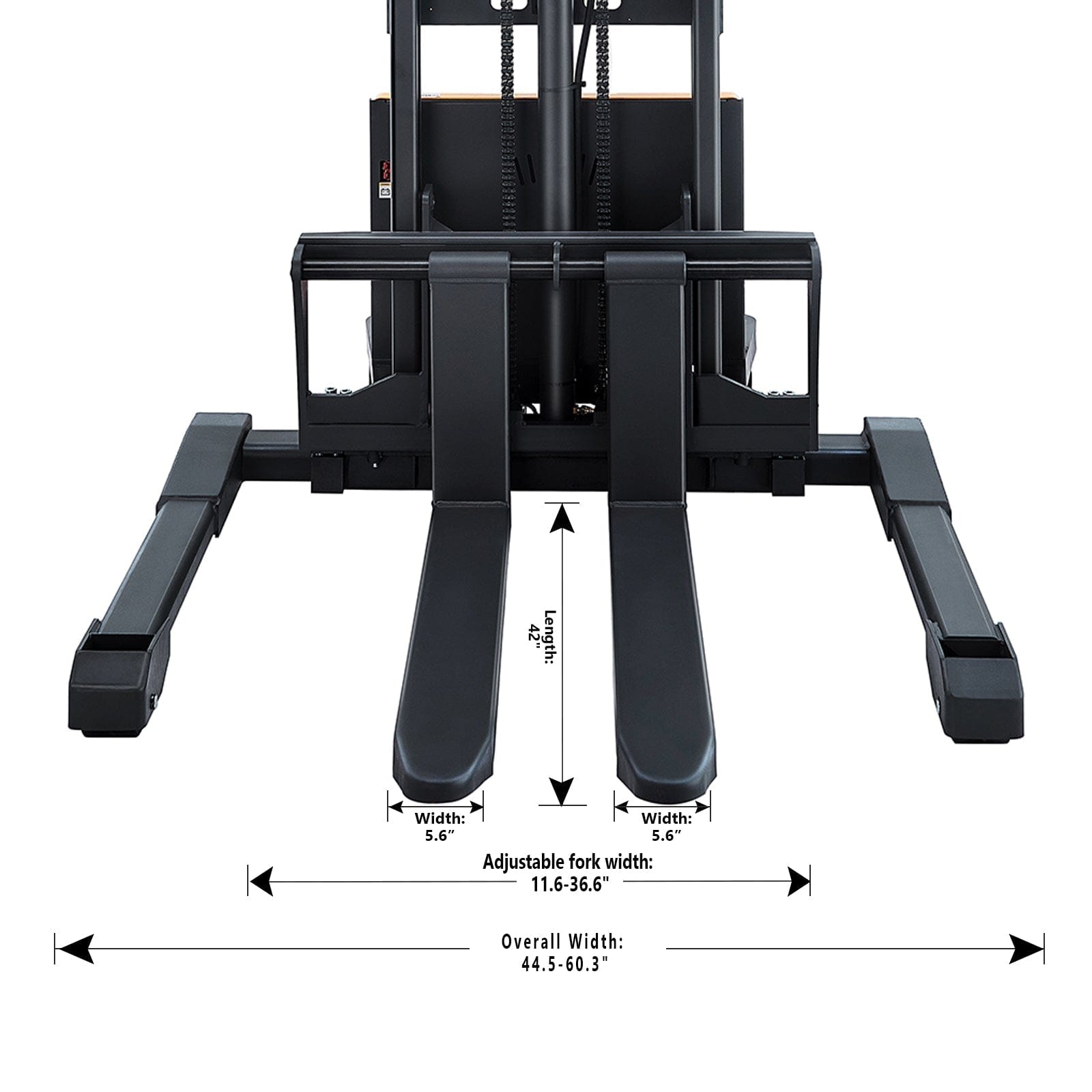

FORKS:

• Thickness：2.3''
• Width：5.6''
• Length：42''
• Adjustable fork width：11.6-36.6''

SPEED:

• Lifting speed(laden/unladen)：2.7/3.9mph
• Lowering speed(laden/unladen)：5.9/4.7mph

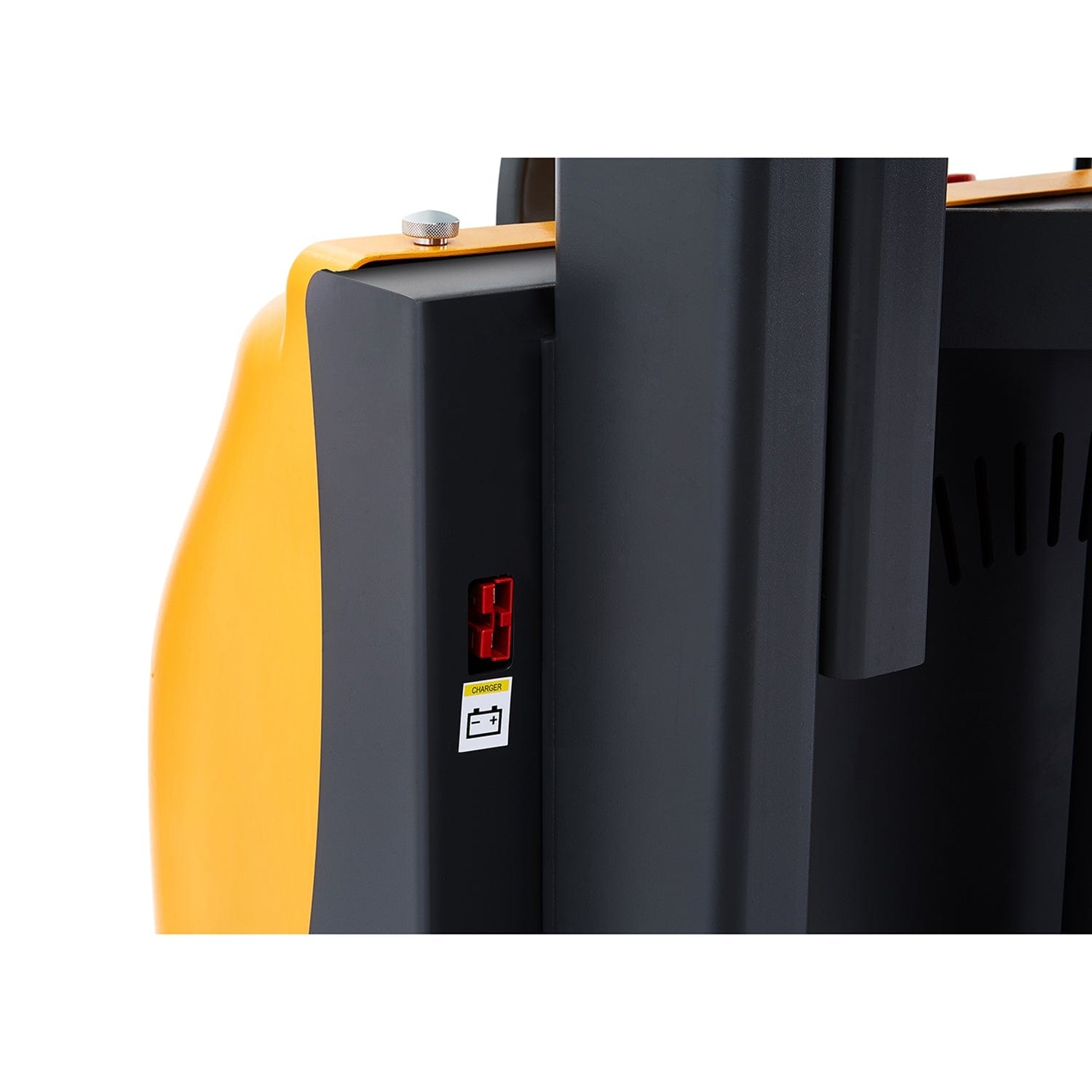

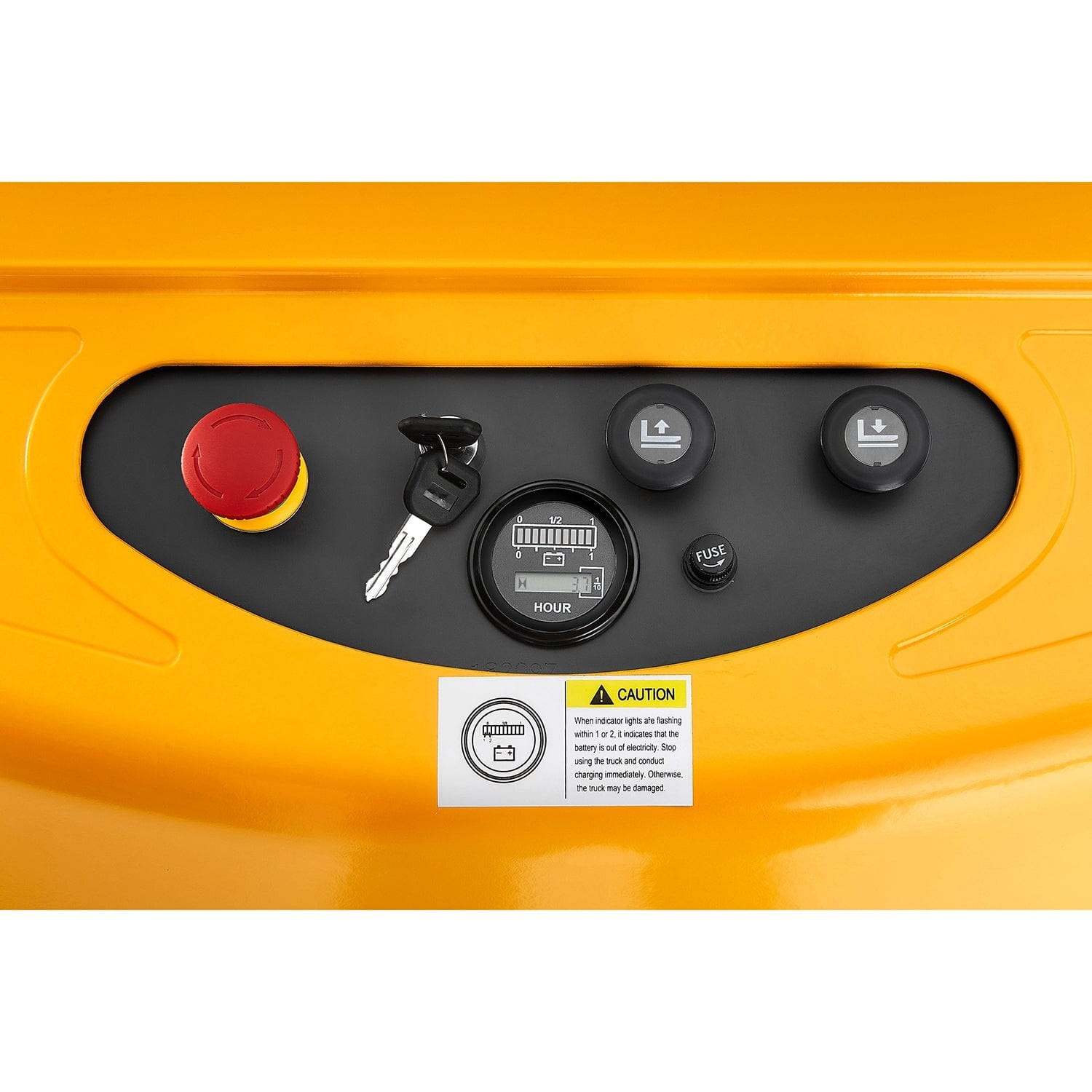

BDI:

• Multi-function battery display indicator.
• Red：the battery is less than 20% and  need to be charged, the truck can walk only, not lift.
• Yellow：the battery is around 50%.
• Green：the battery is full.

 Specifications

• Not explosion proof.
• This truck is designed to be used on flat ground, avoiding uneven grounds with potholes or large ramp.
• Normal Ambient temperature shall not be higher than +104°F and no lower than -13°F.

• Fully charge battery before use to avoid damaging cells.
• Charger plugs into standard 110V-120V outlets.
• Charge the truck once a month even it's not in use.
• Time to fully charge battery: 8 - 10 hrs.
