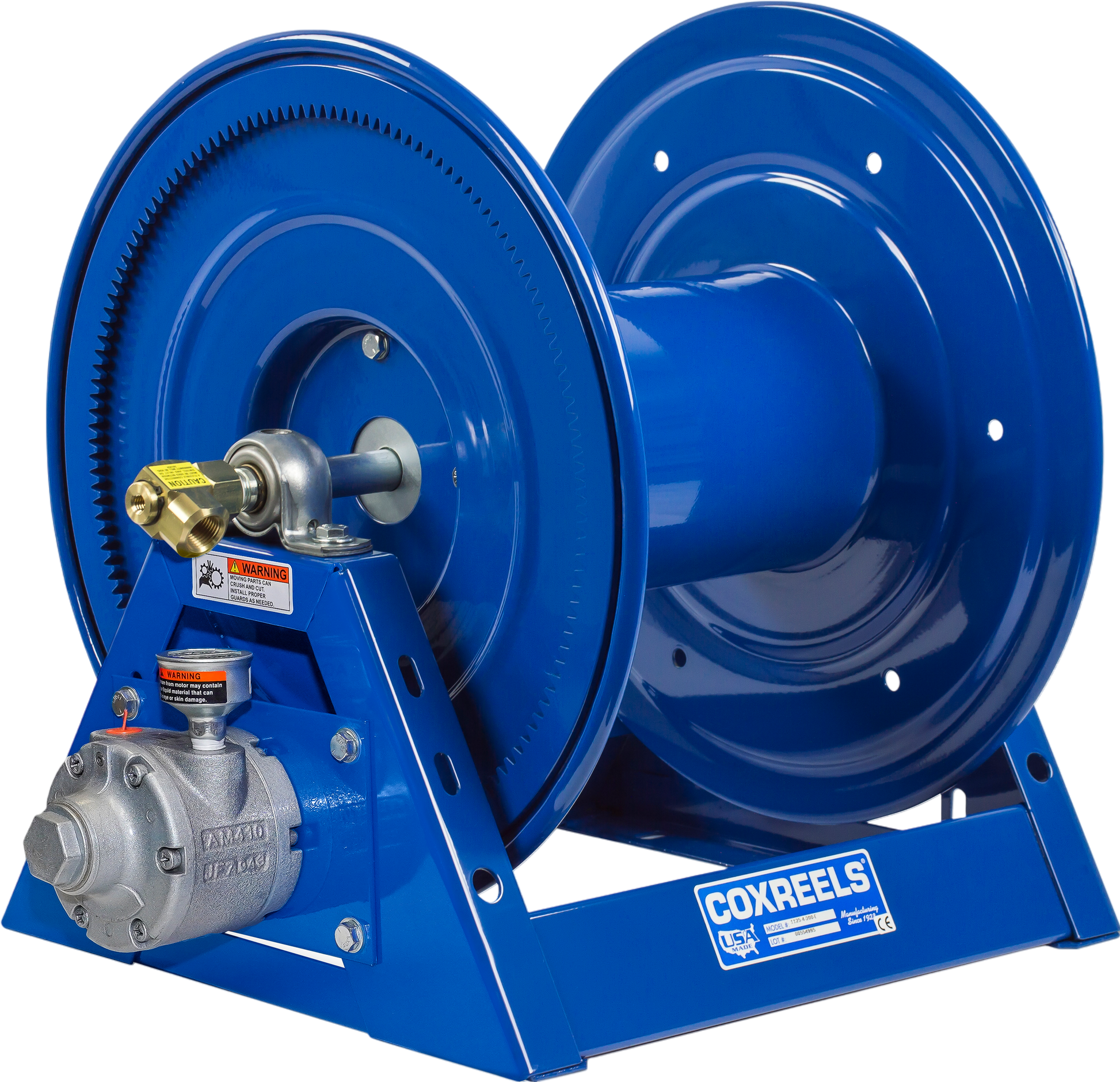

Coxreels Motorized Hose Reel 1/2" x 200' Capacity with Air 4VANE Motor New - 1125-4-200-A

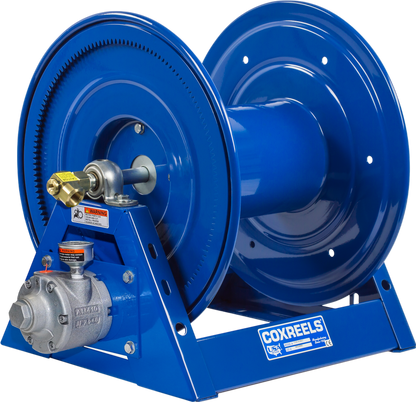

Coxreels  Motorized Hose Reel 1/2" x 200' Capacity with Air 4VANE Motor New - 1125-4-200-A

Coxreels 1125 Series motorized hose reels meet industry professional's demands. Features such as a sturdy one piece all welded "A" frame base, low profile outlet riser and open drum slot design provides a non-crimping, flat smooth hose wrap, making it the industry's preferred design.

What our Experts Think

• Effortless motorized hose management
  The Coxreels 1125‑4‑200‑A Motorized Hose Reel automates winding for 1/2″ hoses up to 200 ft, saving time and effort in busy workshops, service trucks, garages, or industrial bays.
• Air‑powered 4VANE motor for smooth retraction
  Its air‑driven motor delivers reliable, consistent rewind with minimal stress on the hose or operator—ideal where electrical power isn’t convenient or safe.
• Heavy‑duty industrial build
  Built on Coxreels’ sturdy “A”‑frame welded steel base with CNC spun ribbed discs and powder‑coat finish, this reel stands up to daily use in demanding environments.
• Designed for durability & hose protection
  Features a low‑profile outlet riser and open drum design for flat, non‑crimping hose wrap, plus permanently lubricated bearings for smooth rotation and long service life.
• Professional‑grade swivel & fittings
  The machined brass 90° full‑flow NPT swivel simplifies hose installation, ensures continuous fluid/air delivery, and reduces wear at connection points.
• Wide application versatility
  Rated for up to 3,000 PSI, and mountable on floors, walls or vehicles, it adapts to automotive, manufacturing, or maintenance setups.

Q&A

Q1: What is the Coxreels 1125‑4‑200‑A designed for?
A: A heavy‑duty motorized hose reel for managing long, medium‑pressure hoses up to 200 ft (1/2″ I.D.) with air‑powered retraction — ideal in workshops, garages, fleets, and industrial facilities.

Q2: Does this reel include the hose?
A: No — hose is not included. It’s built to accept your own 1/2″ diameter hose up to 200 ft long.

Q3: How does the motorized retraction work?
A: It uses a compressed‑air‑powered #4 GAST 4‑VANE motor that smoothly retracts the hose with direct gear drive, eliminating manual cranking and saving operator time.

Q4: What are the construction and durability features?
A: Features include a welded steel “A” frame base, CNC spun discs with ribbed edges, a low‑profile outlet riser for flat, non‑crimp hose wrap, and permanently lubricated pillow block bearings for long‑lasting performance.

Q5: What hose pressure and connection specs?
A: Rated for up to ~3000 PSI and uses a machined solid brass 90° full‑flow NPT swivel for reliable hose connection and reduced kinking.

Q6: Where can this reel be mounted?
A: Designed for floor, wall, or vehicle mounting, giving flexibility to fit most workshop or service bay configurations.

Q7: What are the size and weight?
A: Approximate dimensions are 23″ W × 19.25″ H × 17.6″ L and the reel weighs around 47 lbs — compact yet rugged for industrial use.

Maintenance Tips

• Clean reel surfaces: Wipe down the frame, drum, and swivel to remove dust, hose debris, and contaminants that can cause abrasion or corrosion.
• Inspect swivel & seals: Check the 90° brass full‑flow swivel and nitrile seals for leaks or wear; replace worn seals to keep smooth fluid rotation and prevent leaks.
• Maintain motor & drivetrain: Ensure the air‑powered 4VANE motor and gear drive operate smoothly; check for loose fittings or unusual noise during rewind.
• Check hose condition: If a hose is installed, inspect for cracks, kinks, or weak spots; replace damaged hose to avoid pressure loss and ensure reliable service.
• Lubricate moving parts: Although bearings are permanently lubricated, keep guide arms and other moving parts clean and occasionally lightly greased to preserve smooth operation.
• Verify mounting & hardware: Tighten wall, floor, or vehicle mount bolts periodically to reduce vibration, maintain alignment, and prevent strain on components.
• Protect from rust & moisture: Store indoors or under cover when not in use to preserve the CPC powder‑coat finish and steel structure.
• Professional service: Annual inspection by a technician helps maintain performance, prolong service life, and avoid costly repairs.
