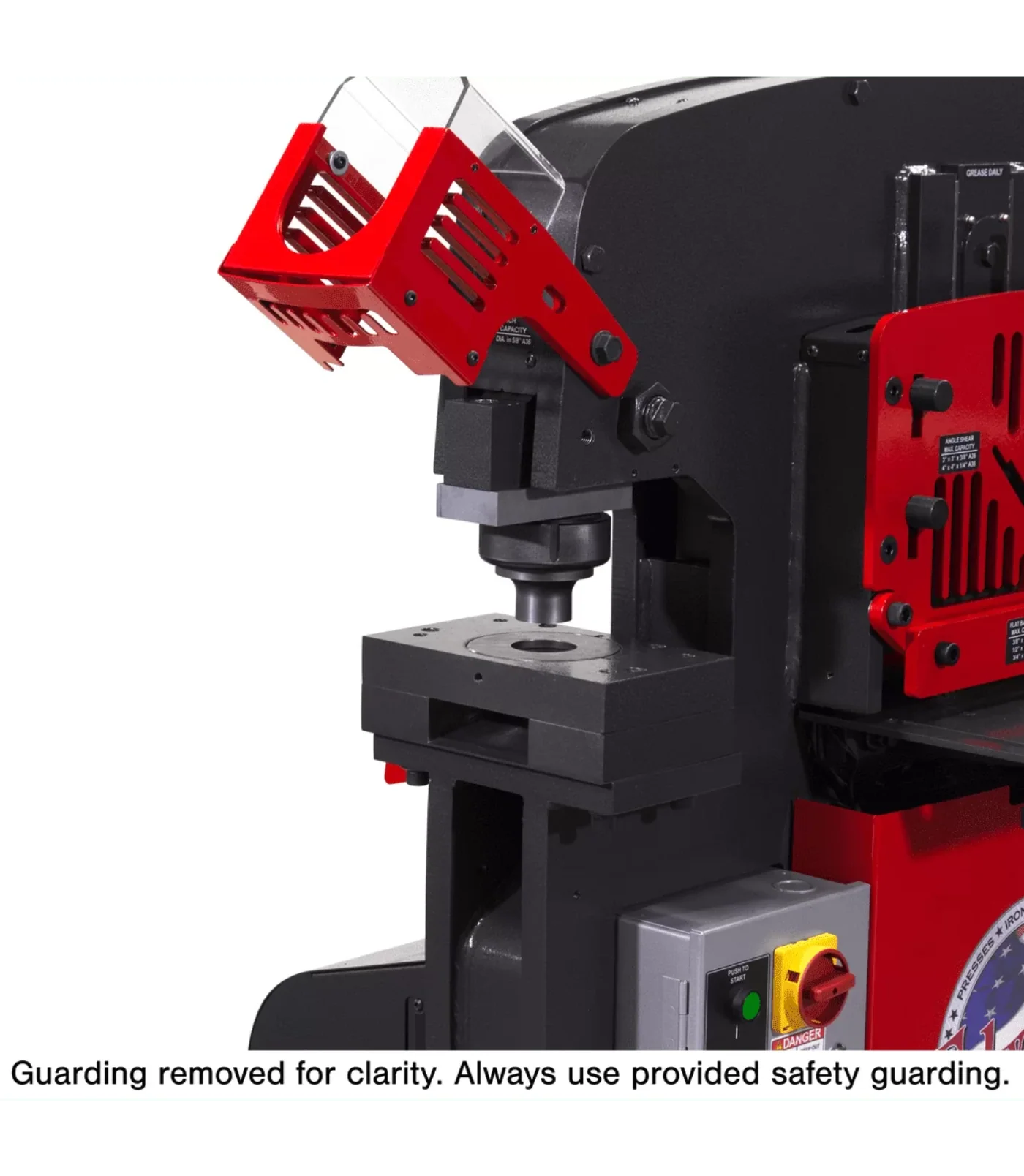

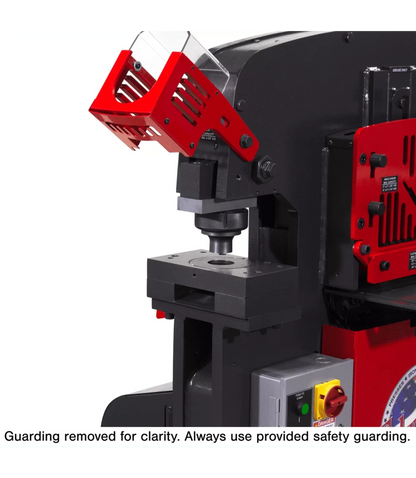

EDWARDS 241 Punch Assembly For 25 Ton Ironworkers - ED9-AC1055-1
The 241 Punch Assembly accommodates punch & die sets in various shapes and sizes from 1" up to 4". Punch large holes and slots in anything from sheet metal to steel plate.
Features
- Punch large holes and slots in anything from heavy sheet metal to steel beams.
- Replaces the installed Punch Assembly on the 25 Ironworkers.
- Requires 241 Punch & Die sets (contact Edwards for pricing and availability).
- 241 punch assembly accommodates punch and die sets in various shapes and sizes from 1" up to 4".
What our Experts Think
-
Precision punching for 25‑ton ironworkers
Designed specifically to deliver accurate, clean hole punching on structural materials — ideal for angle, channel, and flat bar jobs.
-
Durable, industrial‑grade construction
Built with hardened tool steel and precision machining to withstand repeated heavy use while maintaining consistent results.
-
Optimized for productivity
Smooth material flow and efficient punch/die geometry reduce setup time and improve cycle speed — helping shops move through jobs faster.
-
Easy integration with EDWARDS systems
Engineered as a direct fit for EDWARDS 25‑ton ironworkers and compatible accessories, ensuring quick installation and reliable performance.
-
Improved alignment and repeatability
Helps operators maintain precise hole placement run after run, reducing rework and waste.
Q&A
**Q: What is the EDWARDS 241 Punch Assembly for 25 Ton Ironworkers (ED9‑AC1055‑1)?
A: A heavy‑duty punch assembly designed to fit 25 ton Edwards ironworkers, enabling reliable punching of holes in metal with precision and durability.
Q: What hole size does it support?
A: It’s engineered to deliver a 2‑41/64″ (≈ 2.64″) maximum hole capacity, expanding the versatility of your ironworker for larger punching jobs.
Q: Which machines is this compatible with?
A: Specifically made for Edwards 25 ton ironworker models, ensuring correct fit and performance with your machine.
Q: What are the performance benefits?
A: Provides clean, repeatable holes with reduced deflection and wear — ideal for metal fabrication, structural steelwork, and maintenance tasks.
Q: Is the construction durable?
A: Yes — built from high‑strength steel components for long service life under heavy use.
Q: Why upgrade to this punch assembly?
A: It expands punching capability beyond standard sizes, improves precision, and reduces downtime with a robust, reliable assembly.
Q: Who is this product for?
A: Metal fabricators, machinists, and industrial shops with a 25‑ton ironworker needing increased punching capacity and productivity.
Maintenance Tips
-
Clean After Use: Remove metal shavings, dust, and oil buildup to protect punch surfaces and maintain precision.
-
Inspect for Wear: Regularly check punch and die for dull edges, cracks, or deformation; replace or sharpen as needed.
-
Lubricate Moving Parts: Apply light machine oil to the punch assembly and guides to reduce friction and extend tool life.
-
Ensure Proper Alignment: Verify the punch and die are correctly seated in the ironworker to avoid uneven wear or damage.
-
Match Material Thickness: Use punch assembly within its rated capacity to prevent breakage or tool strain.
-
Secure Mounting Hardware: Tighten bolts and clamps to maintain stable, repeatable punching.
-
Protect from Corrosion: Store in a dry environment and lightly oil steel surfaces to prevent rust.
