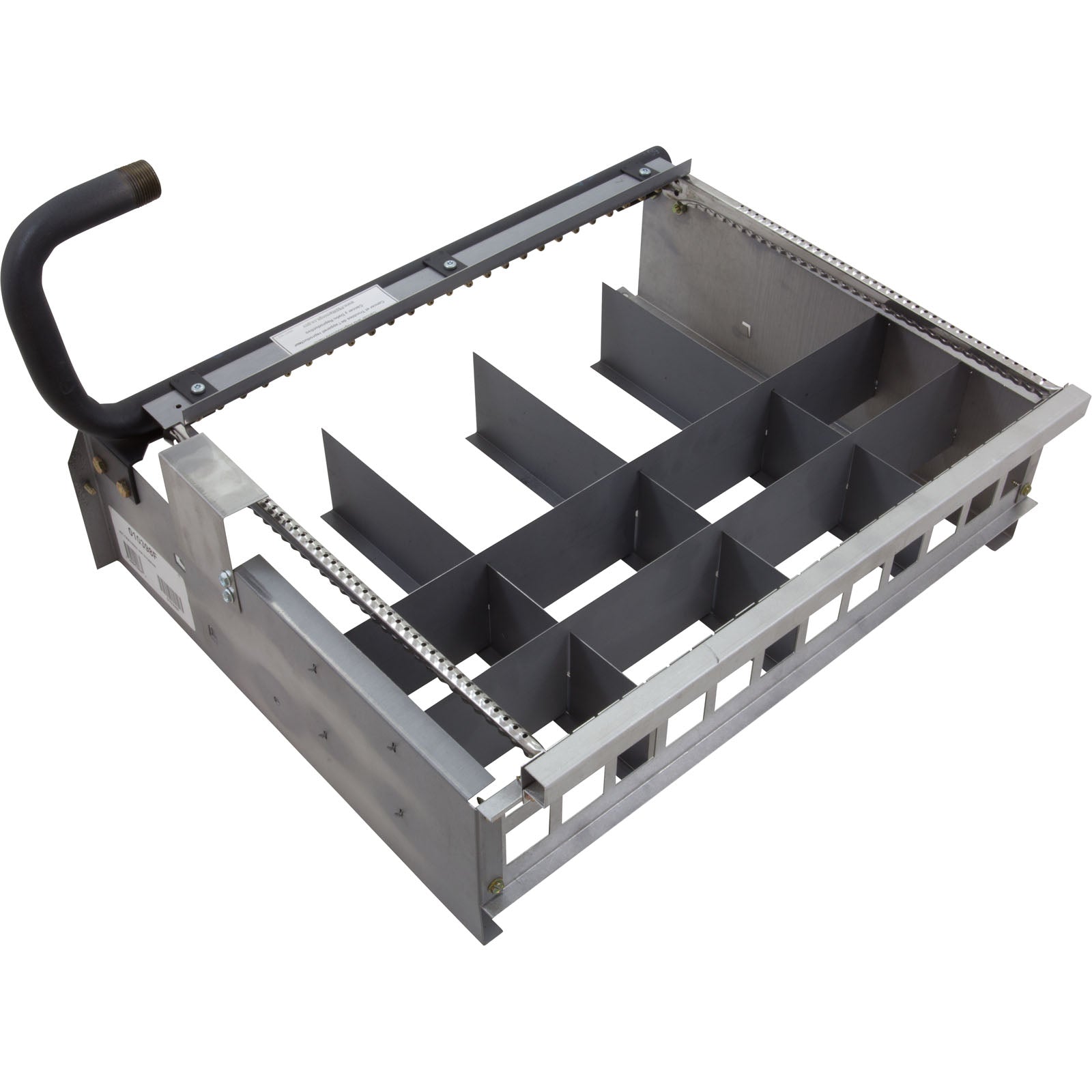

Raypak Burner Tray without Burner Natural Gas Sea Level - 010398F

Raypak Burner Tray without Burner Natural Gas Sea Level  - 010398F

Burner Tray with out Burner, Sea Level, Raypak 010398F

What our Experts Think

• Genuine Raypak OEM Replacement Part
  The Raypak Burner Tray Without Burner – 010398F is an authentic factory‑specified burner tray for Raypak 406A natural gas pool heaters (sea level applications), designed to provide a solid base for the burner assembly without including the burners themselves.
• Core Structural Component
  This tray supports and aligns the burners and burner‑related hardware inside the heater’s firebox, ensuring proper combustion chamber integrity and stable gas flame positioning once burners are installed.
• Designed for Sea Level Use
  Engineered specifically for sea‑level installations, it’s matched to the combustion and gas flow requirements of standard natural gas operation — making it straightforward to pair with the correct burner and orifice kits.
• Heavy‑Duty Construction
  Built to OEM standards using heat‑resistant materials, the tray resists thermal stress and corrosion, helping extend the life of your replacement components compared with generic aftermarket parts.
• Essential During Repairs or Rebuilds
  When your heater’s original tray is warped, cracked, or corroded, replacing it with this OEM unit ensures the new burners sit at the right elevation and orientation, which is critical for safe and efficient heating.
• Professional Service Recommended
  Installation typically requires disassembling the heater’s firebox and correct burner/orifice installation — a job best handled by trained technicians to maintain safety and performance.

Q&A

Q1: What is the Raypak 010398F Burner Tray Without Burners?
A: It’s a genuine OEM burner tray assembly (without burners) for use in Raypak natural gas pool heaters, providing the mounting base and support for burner components.

Q2: Which heater models is 010398F compatible with?
A: Designed primarily for Raypak Model 406A natural gas pool/spa heaters at sea‑level installations (natural gas).

Q3: What does “without burners” mean?
A: This part includes only the burner tray structure — it does not include the burners or burner orifices, so those must be purchased separately.

Q4: What is it used for?
A: It provides a stable base and framework inside the heater for burners, spacing components, and combustion alignment.

Q5: Is this part genuine Raypak OEM?
A: Yes — it is a Raypak original manufacturer replacement part built to original specifications.

Q6: Where is it intended to be installed?
A: For sea‑level installations with natural gas heaters; for high‑altitude use, orifices and kit configurations may differ.

Q7: Why replace a burner tray?
A: Burner trays can corrode or warp over time from heat and combustion by‑products; replacing the tray restores proper burner positioning and heater performance.

Q8: Does it include installation hardware?
A: Typically the tray itself — additional burners, burner spacers, orifices and fasteners are ordered separately based on model and elevation requirements.

Maintenance Tips

• Inspect tray condition: Check for corrosion or rust periodically; replace if metal degradation is evident to prevent structural failure.
• Keep area clean: Before installation or service, remove soot, debris, or insect nests from the tray area for proper support and airflow.
• Check mount points: Ensure screws and hold‑down brackets are secure so the tray sits flat and stable inside the heater.
• Maintain surrounding components: When servicing the burner tray, inspect adjacent parts (pilot tubes, orifices, manifold) and clean if needed for optimal combustion.
• Protect from moisture: Minimize water exposure and condensation to slow corrosion and prolong tray life.
• Professional safety checks: Have a qualified technician inspect the burner assembly annually as part of heater upkeep for safe, efficient operation.
